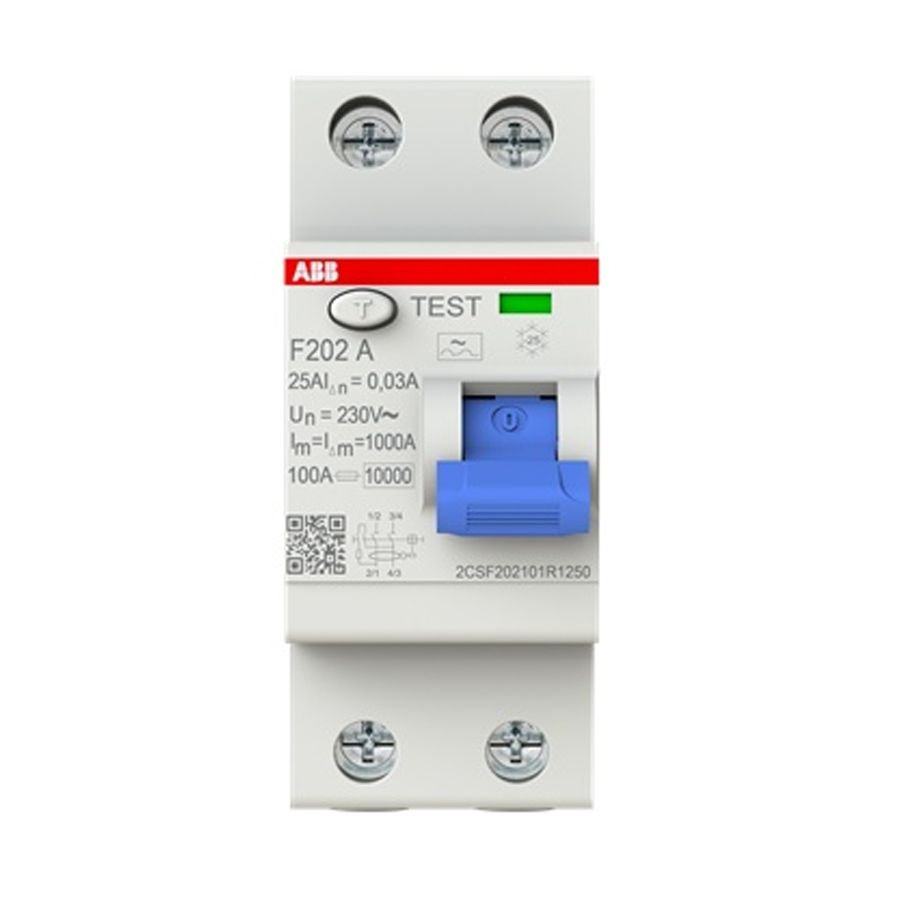

The ABB F200 is a Residual Current Circuit Breaker (RCCB) engineered to provide reliable earth leakage protection in compliance with IEC/EN 61008-1 / 61009-1. Designed for DIN rail mounting, it offers high immunity against nuisance tripping and is suitable for residential, commercial, and light industrial installations.
Technical Specifications
| Rated Current | 25 A |
| Poles | 2P |
| Breaking Capacity | 10 kA |
| Manufacturer | ABB |
| SKU | ABBF202A25/0.03 |
| Series | F200 |
Key Features
- High surge current withstand
- Complies with IEC/EN 61008-1
- DIN rail mounting
- Operating temperature -25°C to +55°C
Typical Applications
Main switchboards, sub-distribution circuits, wet/outdoor applications
Certifications & Compliance
IEC 60898-1, IEC 60947-2, CE, RoHS, RCM (Australia/NZ). Suitable for AS/NZS 3000 wiring rules installations.
