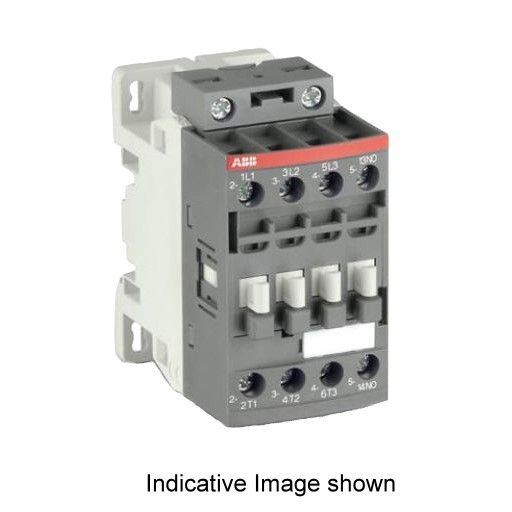

The ABB AF series modular contactor is designed for switching and controlling resistive and inductive loads in residential, commercial, and light industrial applications. Featuring a robust design with low power consumption, it is ideal for heating, lighting, and motor control circuits.
Technical Specifications
| Rated Current | 24 A |
| Poles | 3P |
| Rated Voltage | 250-500V |
| Manufacturer | ABB |
| SKU | ABBAF38300014 |
| Series | AF |
Key Features
- Low power consumption AC/DC operated coils
- Compact modular DIN rail design
- Front-mounted auxiliary contacts (add-on modules)
- Suitable for AC-1, AC-3, and AC-4 utilization categories
- Compatible with ABB manual motor starters
- Mechanical endurance up to 10 million operations
Typical Applications
HVAC systems, lighting control, heating circuits, motor starters, pumping stations, battery backup systems
Certifications & Compliance
IEC 60947-4-1, IEC 61800-3, CE, RoHS, UL 508, RCM (Australia/NZ).
